Harvard Graduate School of Design, Spring 2022

SCI 6368: Pre-and Post-
Independent Project

Instructors: Hyojin Kwon

#Projection Mapping
#Digital Media

Pre- and Post-

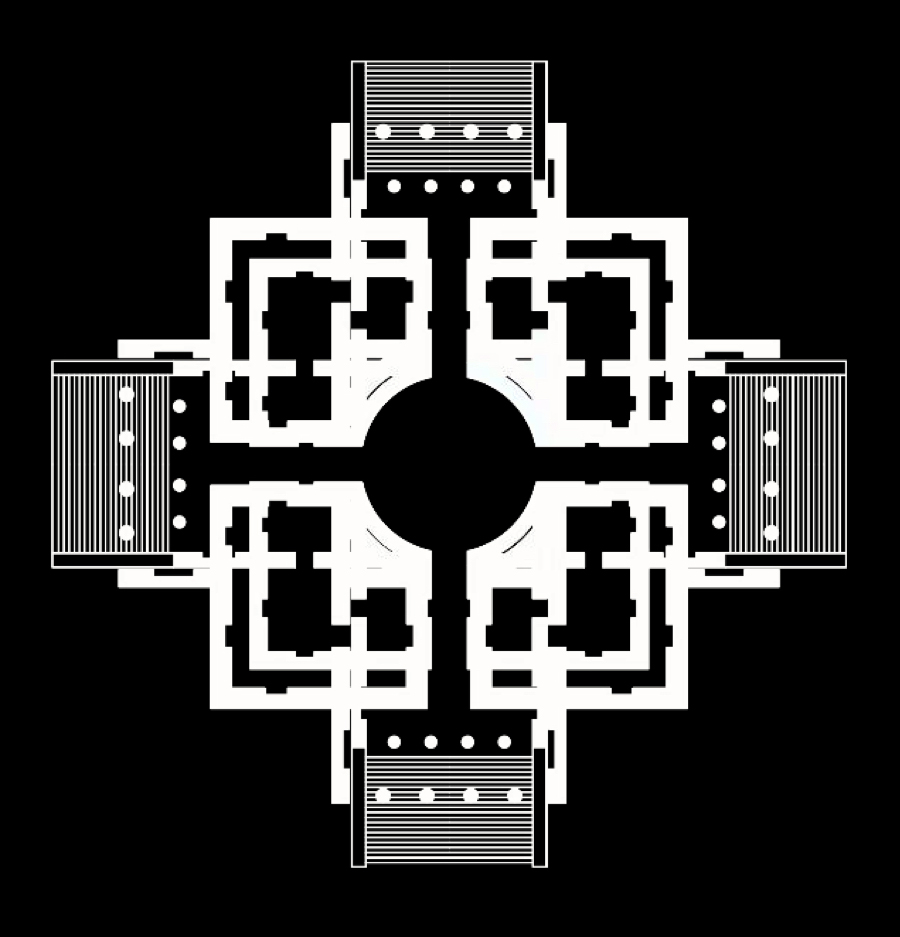

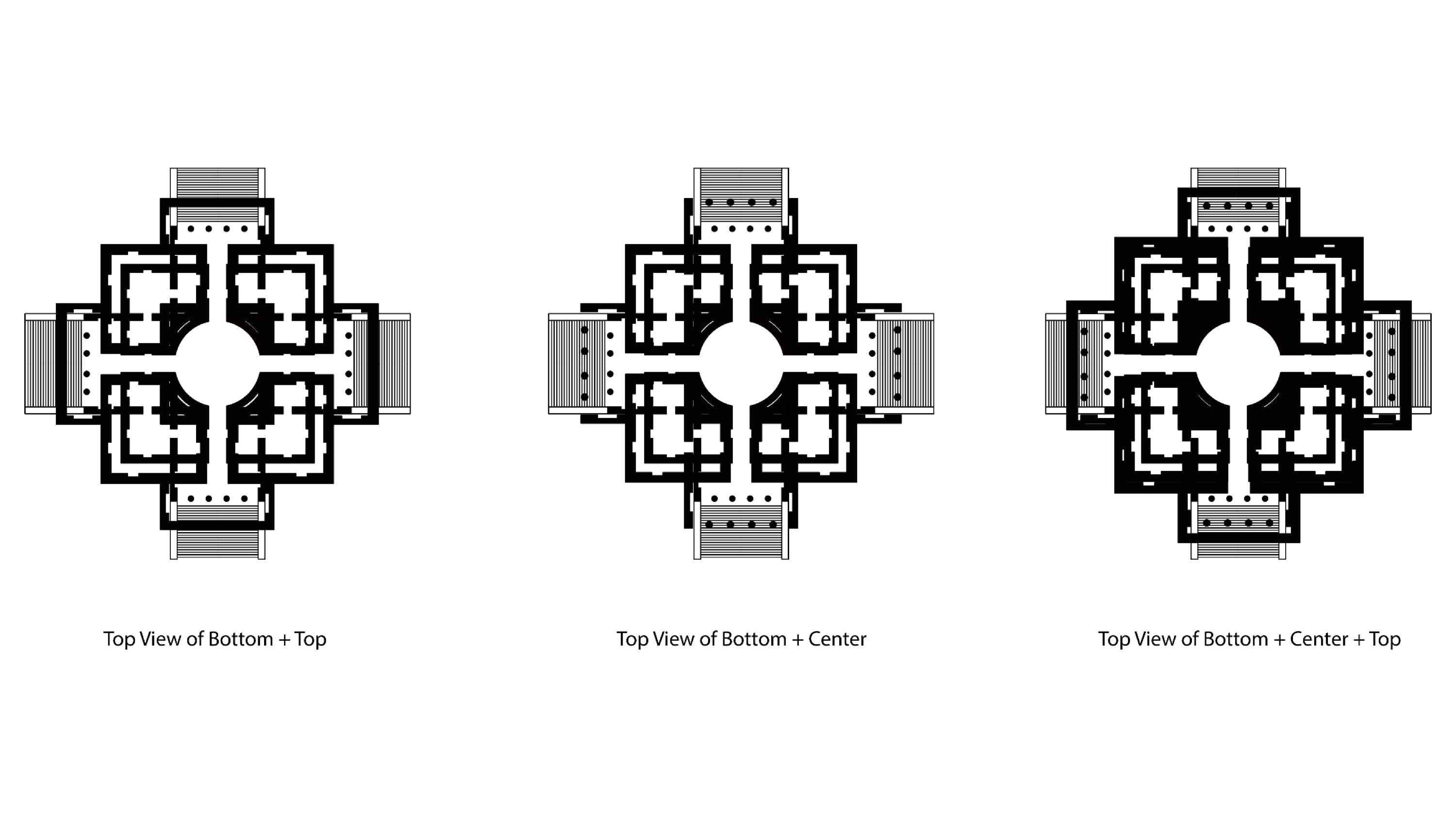

Andrea Palladio’s Villa La Rotonda is renowned for its concept of unity and harmonic proportion. By Following a perfect symmetry and mathematically rhythmical plan, one can easily draw either a circle or square that perfectly aligns with the architecture plan. For the first phase of this class, digitally reconstructed images were created. Vila la Rontanda has three floors, consisting of top, center and ground levels, each were reconstructed on the left side. And all the floors are com- bined and collapsed together forming an overlapping shape on the right side.


3D Model

3D Animation

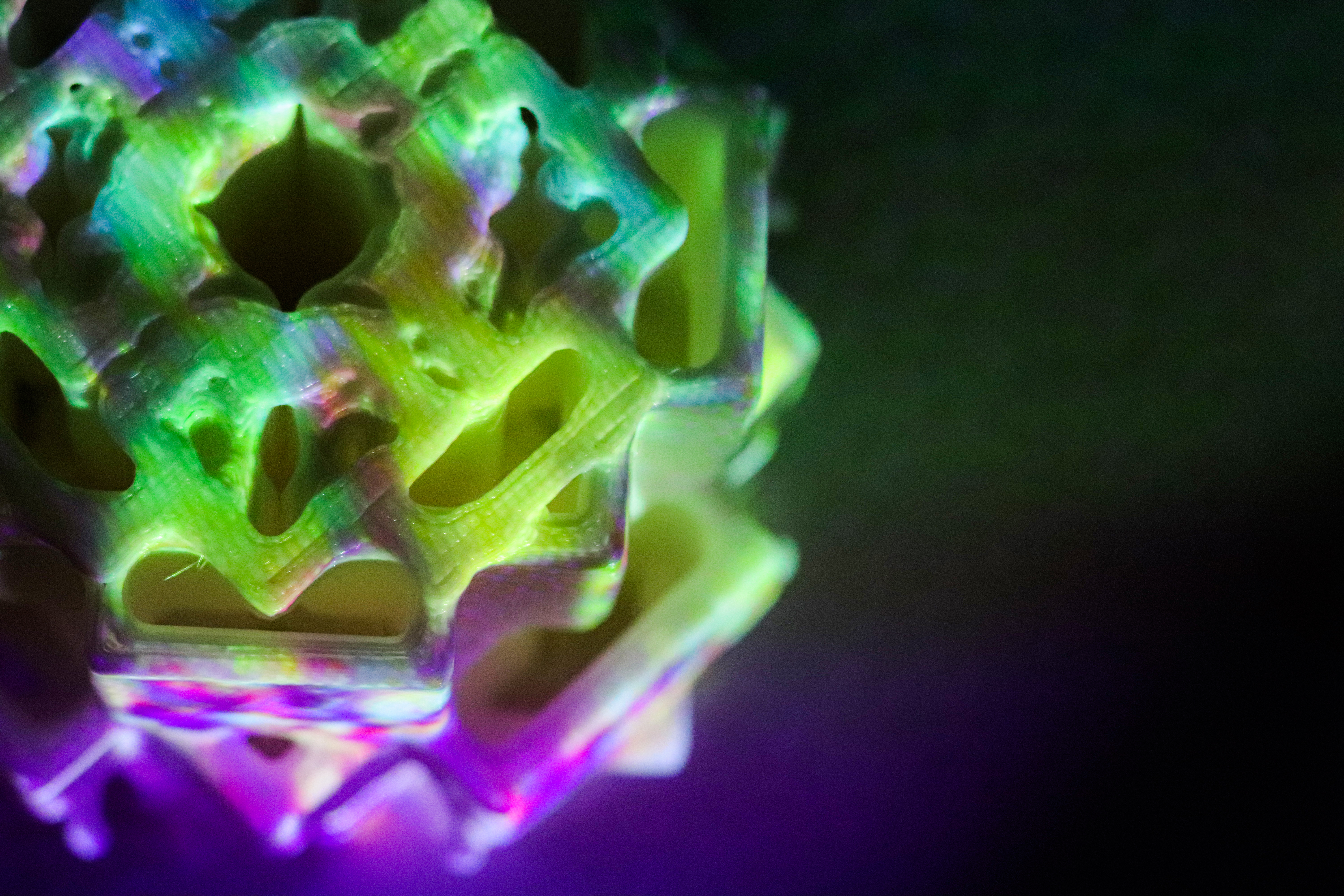

Projection Mapping
